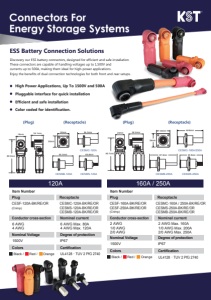

Discovery our ESS battery connectors, designed for efficient and safe installation. These connectors are capable of handling voltages up to 1,500V and currents up to 500A, making them ideal for high-power applications. Enjoy the benefits of dual connection technologies for both front and rear setups. ESS Battery Connection Solutions Connectors For Energy Storage Systems 120A Item Number Plug CESF-120A-BK/RE/OR Receptacle CESMC-120A-BK/RE/OR CESMS-120A-BK/RE/OR CESMB-120A-BK/RE/OR Conductor cross-section 6 AWG 4 AWG Nominal current 6 AWG Max. 80A 4 AWG Max. 120A (Crimp) Nominal Voltage 1500V Degree of protection IP67 Colors Certification UL4128、TUV 2 PfG 2740 Black / Red / Orange 160A / 250A Item Number Plug CESF-160A-BK/RE/OR CESF-250A-BK/RE/OR Receptacle CESMC-160A / 250A-BK/RE/OR CESMS-250A-BK/RE/OR CESMB-250A-BK/RE/OR Conductor cross-section 2 AWG 1/0 AWG 2/0 AWG Nominal current 2 AWG Max. 160A 1/0 AWG Max. 200A 2/0 AWG Max. 250A (Crimp) Nominal Voltage 1500V Degree of protection IP67 Colors Certification UL4128、TUV 2 PfG 2740 Black / Red / Orange 25.1mm 19mm 68.5mm (Plug) (Receptacle) CESMC-120A 54.3mm 30mm 30mm CESMS-120A 48.8mm CESMB-120A 54.3mm 34mm 34mm (Receptacle) (Plug) 22mm 36.2mm 80.7mm 64.6mm CESMC-160A/250A 55.9mm CESMS-250A CESMB-250A 67.3mm High Power Applications, Up To 1500V and 500A Pluggable interface for quick installation Efficient and safe installation Color coded for identification.
350A Item Number Plug CESF-350A-BK/RE/OR Receptacle CESMC-350A-BK/RE/OR CESMS-350A-BK/RE/OR CESMB-350A-BK/RE/OR Conductor cross-section 3/0 AWG 4/0 AWG Nominal current 3/0 AWG Max. 300A 4/0 AWG Max. 350A (Crimp) Nominal Voltage 1500V Degree of protection IP67 Colors Certification UL4128、TUV 2 PfG 2740 Black / Red / Orange 450A / 500A Item Number Plug CESF-450A-BK/RE/OR CESF-500A-BK/RE/OR Receptacle CESMC-450A / 500A-BK/RE/OR CESMS-500A-BK/RE/OR CESMB-500A-BK/RE/OR Conductor cross-section 300K cmil 350K cmil Nominal current 300K cmil Max. 450A 350K cmil Max. 500A (Crimp) Nominal Voltage 1500V Degree of protection IP67 Colors Certification UL4128、TUV 2 PfG 2740 Black / Red / Orange (Plug) (Receptacle) (Receptacle) (Plug) 37mm 44.3mm 113mm 33mm 44.3mm 106.4mm 46mm 46mm CESMC-350A 80.6mm CESMS-350A 69.1mm CESMB-350A 78.8mm CESMB-500A 82.8mm 46mm 46mm 80.8mm CESMC-450A/500A 70.8mm CESMS-500A ‧Crimp Termination ‧Busbar ‧Screw Fastener www. kstermi na l s . com
