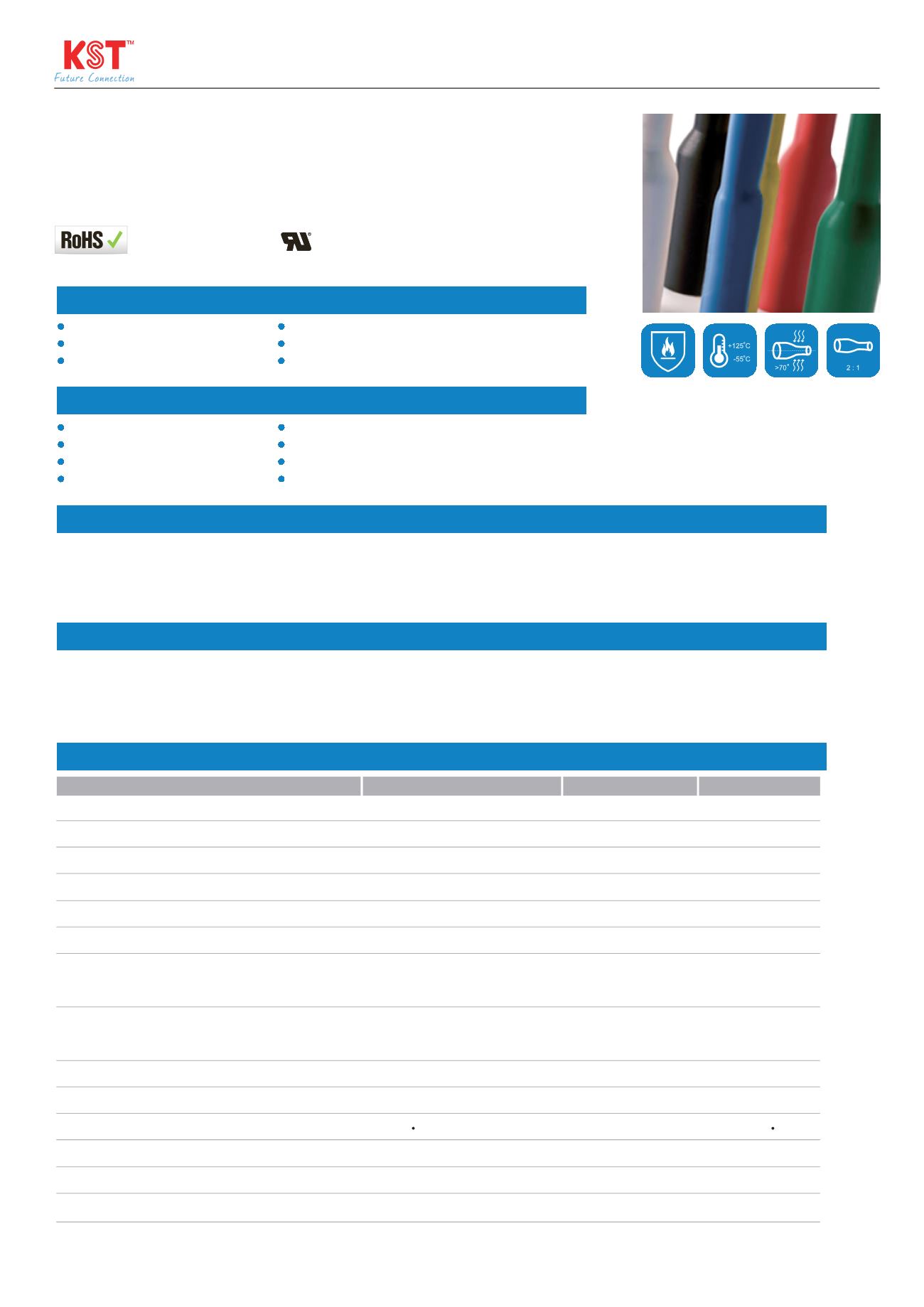

通用型熱收縮套管
操作溫度範圍 Operating temperature range
操作溫度 : -55˚C~125˚C
最低收縮溫度 : 70˚C
最低完全收縮溫度 : 110˚C
General purpose, flame retardant polyolefin tubing
Thin Wall Polyolefin Tubing
HST-GF
特性 Characteristics
收縮率:2:1
非常柔軟，高阻燃性能
對通常的可溶解性液體有抵抗性
優異的物理，化學和電子性能
Operating temperature : -55℃ ~ 125℃
Minimum shrink temperature : 70℃
Minimum fully recovery temperature : 110℃
Shrinkage Ratio: 2:1
Very flexible, highly flame retardant
Resistant to common fluids and solvents
Excellent physical, chemical, and electrical properties
應用 Applications
被廣泛地應用於工業和商業領域，如電子絕緣，元件、終端、結合處的保護，另外還常被用於束線的包覆和電線電纜電子元件的顔色標識。
顏色 Color
技術性能 Technical Data
標準顏色: 黑、白、紅、藍、黃、綠
35mm ~ 180mm (35mm含) 以上規格無印刷字體
125℃VW-1 600V
縱向伸長率 Longitudinal shrinkage
特性 Property
標準 Specification Requirement
測試方法 Test Method 結果 Typical Value
Widely used in industrial and commercial field such as electrical insulation, in-line components, disconnect terminal and splices.
Besides, used commonly to protect and cover bundles wires.
Identifies or color-codes wire, cables, terminals, and components.
Standard color ：black、white、red、blue、yellow、green
Size 35mm ~ 180mm (35mm included) is without printing (blank tube)
集中性 Concentricity
擴張強度 Tensile strength
斷裂伸長率 Elongation at break
熱衝擊(250℃,4小時) Heat shock(250℃, 4hrs.)
冷彎曲(-55℃,4小時) Cold bend (-55℃, 4hrs.)
擊穿強度 Dielectric strength
體積電阻率 Volume resistance
銅腐蝕性 Copper corrosion
銅穩定性 Copper stability
阻燃性 Flammability
老化擴張強度 Tensile strength after
老化延伸度 Elongation after
耐壓 Dielectric voltage withstand and breakdown
5% max.
70%min.
10.4MPa min.
200% min.
No cracking
No cracking
19.7KV/mm min.
No corrosion
Elongation ≧ 100%
VW-1
70% of original min.
100% min.
2500V, 60sec, No breakdown
aging 158℃,168 hrs.
aging 158℃,168 hrs.
10 Ω cm min.
14
ASTM D 2671
ASTM D 2671
ASTM D 638
ASTM D 638
ASTM D 2671
ASTM D 2671
ASTM D 2671
ASTM D 2671
ASTM D 2671
UL224
ASTM D 638
ASTM D 638
UL224
ASTM D 876
≦ 5%
≧ 70%
≧ 14.0MPa
≧ 400%
Pass
Pass
25KV/mm
Pass
Pass
Pass
≧ 90%
≧ 300%
Pass
≧ 10 Ω cm
14
- 1 -
UL File no. E482352
