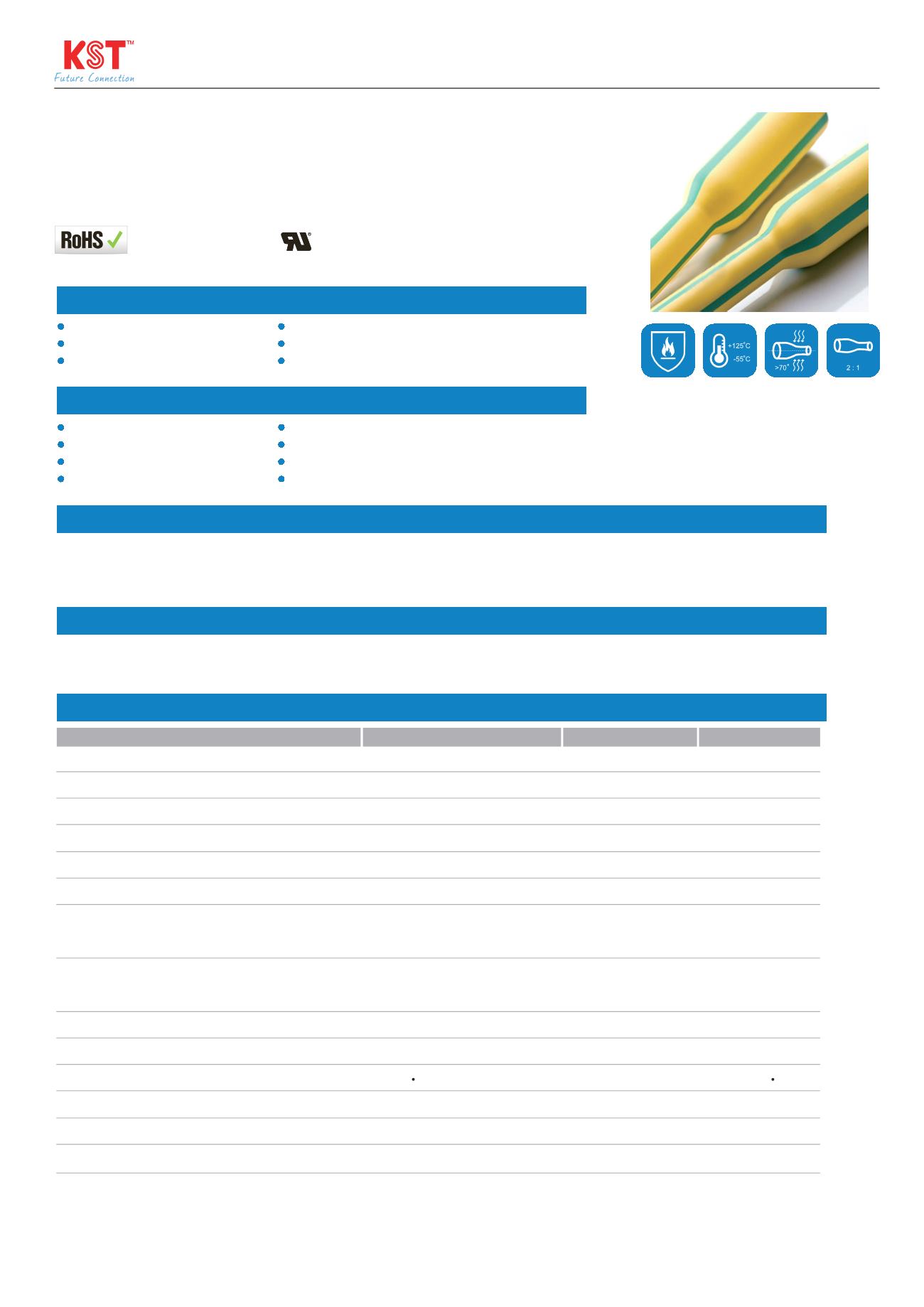

接地標示用黃綠熱收縮管
操作溫度範圍 Operating temperature range
操作溫度 : -55˚C~125˚C
最低收縮溫度 : 70˚C
最低完全收縮溫度 : 110˚C
Yellow & Green striped polyolefin tubing
Thin Wall Polyolefin Tubing
HST-GF-YG
特性 Characteristics
收縮率:2:1
雙種顏色用於標識
顏色恆久，方便的用於標記
符合RoHS
Operating temperature : -55℃ ~ 125℃
Minimum shrink temperature : 70℃
Minimum fully recovery temperature : 110℃
Shrinkage Ratio: 2:1
Dual colors for instant identification.
Permanent tubing colors are superior to conventional ink marking.
Meet RoHS
應用 Applications
黃綠相間的條紋狀套管，用於標識地線。被廣泛地應用於電線標記，顏色解碼，電子絕緣等領域。
顏色 Color
技術性能 Technical Data
標準顏色: 黃綠相間
125℃VW-1 600V
長度變化率 Longitudinal change
特性 Property
標準 Specification Requirement
測試方法 Test Method 結果 Typical Value
Unique yellow-green striped color used for identifying earth cables, which applying to wire marking, color coding,
electrical insulation of wire harness assemblies. Comply with international electrical ground designation.
Standard color ：yellow-green
集中性 Concentricity
擴張強度 Tensile strength
斷裂伸長率 Elongation at break
熱衝擊 Heat shock(250℃, 4hrs.)
冷彎曲 Cold bend (-55℃, 4hrs.)
擊穿強度 Dielectric strength
體積電阻率 Volume resistance
銅腐蝕性 Copper corrosion
銅穩定性 Copper stability
阻燃性 Flammability
老化擴張強度 Tensile strength after
老化延伸度 Elongation after
耐壓 Dielectric voltage withstand and breakdown
0
±10%
70%min.
10.4MPa min.
200% min.
No cracking
No cracking
19.7KV/mm min.
No corrosion
Elongation ≧ 100%
VW-1
70% of original (min.)
100% min.
2500V, 60sec, No breakdown
aging 158℃,168 hrs.
aging 158℃,168 hrs.
10 Ω cm min.
14
ASTM D 2671
ASTM D 2671
ASTM D 638
ASTM D 638
ASTM D 2671
ASTM D 2671
ASTM D 2671
ASTM D 2671
ASTM D 2671
UL224
ASTM D 638
ASTM D 638
UL224
ASTM D 876
Pass
≧ 70%
≧ 14.0MPa
≧ 400%
Pass
Pass
25KV/mm
Pass
Pass
Pass
≧ 90%
≧ 300%
Pass
≧ 10 Ω cm
14
- 6 -
UL File no. E482352
